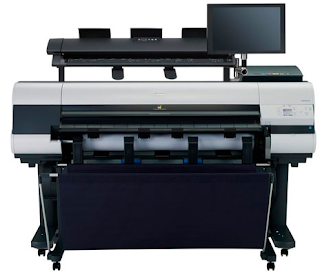

ImagePROGRAF iPF850
To work in an environment of CAD with the highest requirements, see iPF850. Large format printer with the print area width 44 inches has the quality, flexibility and speed.

Benefits

• Working with two rolls of 44 "for maximum productivity
• High-capacity, high-capacity, continuous capacity stacker
• Ink wells 330 ml/700 ml with the possibility of "hot swapping" during printing
• High speed even in economic mode
• 5 LUCIA ink system ink purple color with the new color rendering to richer
• The quality of graphics CAD high provide a high level of detail
• Continuous printing in large volume thanks to the built-in hard drive 320 GB
• Enhanced support for HP-GL/2, HP-RTL and AutoCAD drivers optimized
• Cost management and tracking return on investment using accounting software
• Support for Direct Print & Share and Cloud Software

Working in conjunction with two rolls of 44 "

Working with two rolls of the media ensuring maximum performance. The printer can print on rolls with the same or different widths (up to 44 inches), as well as various types of paper, such as plain paper and coated paper, simultaneously. Automatic displacement between the rolls with paper with different characteristics ensure high productivity without the need for operator intervention to replace the paper.

High capacity stacker

IPF850 uses a large capacity stacker (up to 100 sheets) for working with images with different sizes (up to A0) simultaneously. The ability to extract the mold from the front of the device to make it more comfortable working with the document.

Thin line, color, clear and the high-speed printing

With printer iPF850 You can rely on high performance. Designed to work with CAD in both printing companies and large corporations, 44 acre inch printer provides a line of reproduction and natural colors.

The quality and accuracy of the extraordinary

Jet printing system 5 colors with pigment ink and Canon-based dyes gives bright colours and fine lines, smooth, linear and error +/-0.1% and the minimum line thickness 0.02 mm. Picture is displayed at a resolution of 2400 x 1200 dots per inch for maximum effect because the ultra right with 15 360 printhead nozzles. New magenta ink allows you to create images that are sharper and the bright posters.

High-performance

Outstanding picture quality coupled with outstanding performance-A0 potluck for 42 seconds and A1 in just 22 seconds. This model uses a large ink tank (330 ml and 700 ml) with the possibility of the replacement of the "hot" for printing, which ensures continuous operation. In addition, the unit to two reels for longer lets you print on media with different types and sizes.

The effectiveness and cost-efficiency

Built-in accounting functions allow you to accurately determine the cost of the printing of one copy and the total cost of the printer; While you can view the data via the printer driver or export it to a CSV file and use it in Your system or documents. To save cost, you can choose economical mode with reduced consumption of ink, which is ideal for printing a document draft.

All that is needed for working with CAD

IPF850 printer is designed for integration into the workflow of CAD with high demand. Processing large files that are effective with better support for HP-GL/2. Enabled support for the HP-RTL format; The package includes AutoCAD drivers optimized for Windows. Enhanced device management systems and increased security for a huge working group thanks to the ability to connect eMaintenance, lock the control panel and SNMP v3 Protocol.

Built-in hard disk capacity of 320 GB for ease of use

Built-in 320 GB hard drive provides the ability to create mailboxes when using the by some users, for instance in an enterprise environment. Convenience is also reached via an easy to use graphical interface, which facilitates the operation of all operation.

Full software support

IPF850 support a cloud environment, software Direct Print & Share, Print Utility for iPad applications and OCÉ Publisher Select (from the autumn of 2015) to optimize the workflow. Integration with applications working with Microsoft Office plug-ins and support PosterArtist Lite to make the posters.

Canon imagePROGRAF iPF850 Specs

• Product Name ImagePROGRAF ipf850
• Printhead (number of nozzles)-, 120 nozzle, BK/C/M/y× 2,560 nozzle Gauge 15,360 Nozzle
• Maximum resolution 2400 × 1200dpi
• Ink tank capacity Each color 330ml/700ml (initial bundled ink becomes 330ml)
• Supply system Tubing Method (with sub-tank)
• Feeding method (cut paper), roll paper, double roll (2 pieces)
• Maximum printable length * 1 18m
• Maximum paper width 1, 118mm (44inch/B0-Novi)
• Available Paper size cassette-
• Manual (cut paper) minimum 203mm (8inch) × 203mm ~
• Max 1, 118mm (44inch) × 1, 600mm (63inch)
• However, the minimum when using stacker is 210mm
• Manual (board)-
• Rolls width 254mm (10inch) ~ 1, 118mm (44inch)
• Printable area cassette-
• Hand pointing (cut paper) tip margin 3mm, rear margin 23mm, left and right margins 3mm
• Manual (board)-
• Roll paper tip margin 3mm, rear margin 3mm, left and right margin: 3mm
• Print recommended Area cassette-
• Hand pointing (cut paper) Tip margin 20mm ､ rear margin 23mm, left and right margin 5mm
• Manual (board)-
• Roll paper tip margin 20mm ､ rear margin 5mm, left and right margin 5mm
• Non-borderless Width * 2 254mm, 356, 432mm, 515mm, 594mm, 610mm, 841mm, 914mm, 1, 030mm, 1, 067mm
• Roll Paper Max od 150mm
• Paper thick insert (cut paper): 0.07 ~ 0.8 mm, Roll paper: 0.07 ~ 0.8 mm
• Interface standard equipment 10base/100base/1000base, Speed USB
• Options-
• Distance accuracy * 3 ± 0.1%
• Printer Language GARO (Graphic Arts language with Raster Operations)
• GL/2, HP RTL
• Compatible OS (standard attached printer driver * 4) * 5 Windows 8/Windows 8.1/Windows 7/Windows Vista/Windows XP/Windows Server 2003/Windows Server 2008/Windows Server 2012
• Mac * 6 mac OS X 10.6.8 or later
• Memory 32GB
• Hard Disk 320GB
• Power supply AC 100v (50/60hz)
• Power consumption
• Operating: Less than 200w, standby (Low power mode): 5w or less
• Operating sound: approx. 60db (a) or less, standby: approx. 35db (a) or less
• Operating Environment temperature: 15-30 ℃, Humidity: 10-80% (but noncondensing)
• External Dimensions (W×D×H) body only-
• Option/Stand installation 1893 × 1320 × 1, 144mm (stand-stacker Body Standard installation)
• Body weight approx. 213kg (when mounted on stand/stacker)
• Product structure
• Printer body
• Stand
• Power cord
• One print head
• 5 Color ink tank (MBK/BK/C/M/Y) * The initial bundled ink tank capacity is 330ml
• Setup Guide
• Quick Guide
• Driver Cd-rom× 2 Pieces
• Web Registration Request
• Maintenance cartridge (attached to body)
• 1 Roll holder with 2 "/3" paper tube
• Print adjustment paper (coated paper) A2× 5 sheets (cut paper)
• Posterartist Lite
• Related Standards VCCI Class B Information technology equipment, International Energy STAR Program, RoHS compliant, Eco mark, green Purchasing Act

Canon imagePROGRAF iPF850 Driver Windows 32bit

Compatibility:
Operating system(s): Windows 10 (32 Bit), Windows 2003, Windows 2008, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP

Language(s): English, French, German, Italian, Portuguese, Russian, Spanish

Download ⟸Canon imagePROGRAF iPF850 Driver Windows 64bit

Compatibility:
Operating system(s): Windows 10 (64 Bit), Windows 7 64bit, Windows 8 64bit, Windows 8.1 64bit, Windows Server 2003 64bit, Windows Server 2003 R2 64bit, Windows Server 2008 64bit, Windows Server 2012 64bit, Windows Vista 64bit

Language(s): English, French, German, Italian, Portuguese, Russian, Spanish

Download⟸Canon imagePROGRAF iPF850 Driver Mac
Download for Mac Os Click Here

Driver Download or the Installation for Windows Operating System:

How to install the driver for Canon imagePROGRAF iPF850:

1. First, you need to click the link provided for download, then select the option “Save” or “Save as”. Clicking “Save” is for downloading the file. Meanwhile if you choose “Run” or “Open”, the file downloaded will be automatically installed after the downloading process is completed.
2. For your information, the driver file that you download will be saved in a certain folder that you have set before, especially in the self-extracting form or (.exe format).
3. The last step is double clicking the downloaded file that has the format EXE file for the decompress process. Then, the installation will be automatically started.

How to uninstall the driver by using Control Panel.

Note: The following steps are for Windows 7. The different versions may have the different settings.

1. Come to the Start menu, then you need to choose Control panel --> choose the driver and click “Uninstall a Program.”
2. Wait until a page is appear with the list of the installed program. Then you need to double click the program that you want to uninstall.
3. At last, choose “Yes” and “Ok”. The uninstall process is completed.

Driver Download or Installation process for Mac Operating System:

How to install driver of Canon imagePROGRAF iPF850 in Mac:

1. First, you need the file of the driver. When you have already completed the downloading process, it will be saved in the certain folder. You can see it at the computer settings.
2. Second, you need to double click the downloaded driver file and mount it on the Disk Image.
3. The third step is that you need to double click again the mounted Disk Image.
4. At last, double clicking the packaged driver file. Do not worry, the installation is about to be started automatically.

However, the step-by-step of the installation (and vice versa), it can be differed depend upon the platform or device that you use for the installation of Canon imagePROGRAF iPF850.The above mentioned, the installation is occurred using Windows 7 and Mac for windows XP or windows 8 is not much different way.
