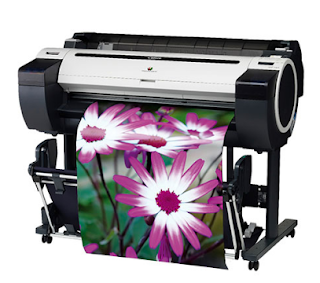

ImagePROGRAF iPF785With this 5-color 36-inch printer with a 320 GB hard drive, boost your productivity while saving money. Get a stunning sharpening for CAD/GIS applications and poster printing with the new magenta ink. Large Capacity tanks guarantee continuous productivity.
Faster trolley
Purified Structure 36 inches
Optimized clarity on CAD drawings and compatibility with HP-GL/2 formats
Ink System 5 Colors LUCIA
New Magenta ink ensures more accurate color reproduction
130/300 hot-swappable ink tanks
Direct Print & Share Software
Compatibility with the Cloud
320 GB Hard Drive
Accounting tools
Detailed features
Discover all the advantages of Canon ImagePROGRAF iPF785
Canon imagePROGRAF series has some of the models below
$4.995 (iPF785), $4.495 (iPF780), $3.195 (iPF685), $2.495 (iPF680), $8.995 (iPF785 M40 MFP), $8.495 (iPF780 and $395 for the M40 MFP prints PosterArtist. and ($595) to SmartWorks MFP Plus software.
TECHNOLOGY
Canon imagePROGRAF iPF785 Driver Download for Windows
Strengths
Continuous printing of large volumes with hard driveFaster trolley
Purified Structure 36 inches
Optimized clarity on CAD drawings and compatibility with HP-GL/2 formats
Ink System 5 Colors LUCIA
New Magenta ink ensures more accurate color reproduction
130/300 hot-swappable ink tanks
Direct Print & Share Software
Compatibility with the Cloud
320 GB Hard Drive
Accounting tools
Detailed features
Discover all the advantages of Canon ImagePROGRAF iPF785
High productivity
Enjoy a higher level of productivity with the new 5-color Canon iPF785 printer. Its faster cart allows you to print documents in A0-format in draft mode in 41 seconds. The 320 GB hard drive offers more storage space for print job data, including complex or heavy files. Also ensure that users have optimized efficiency with the new Direct print and Share software shortcut feature. This utility allows them to create shortcuts that give access to the most used print settings, and then print their documents by dragging and dropping files on shortcuts.High quality results for each use
Canon's 5-colour pigmented ink system offers the most accurate and fine tracing. The accuracy of +/-0.1% is guaranteed by a minimum line width of 0.02 mm. Get CAD and GIS drawings with brighter colors, as well as optimized quality for text or red images of posters and point-of-sale advertisements with the new magenta ink from the iPF785 printer, which covers a range of Unprecedented colors.More ink, fewer interruptions
Print large volumes continuously with large capacity ink tanks of 130/300 ml of the iPF785 printer, interchangeable according to the frequency of use. These tanks can also reduce your total cost of ownership due to a lower cost per ink volume. The hot-swap feature also allows you to replace the tanks in the process of printing, ensuring continuous operation even during long printing tasks.Compatibility with the Cloud
Boost your productivity and streamline print workflows with the ImagePROGRAF Direct print & Share software, which allows you to print different types of files without a specific application. In addition to integrating PosterArtist, the solution allows you to download files for immediate sharing with simple access, even from mobile devices. Printing from an IPAD application is also supported *.Make your investment profitable with ease
More easily manage printing costs with the built-in State monitor. This accounting function collects print jobs logs and automatically calculates costs per task or period. You can select the economical mode that uses less ink, which is ideal for printing drafts.Clean Design
Optimize your workspace with the sleek 36-inch structure of the Canon iPF785 printer, both compact and feature-rich. Its small size is ideal for companies looking for a little bulky accessory offering high productivity.Suitable for demanding workflows
The iPF785 printer is compatible with HP-GL/2 and HP-RTL formats and offers the ability to adjust the settings of markers and color palettes for integration with CAD workflows. Integrated software includes a driver optimized for AutoCAD, as well as a plug-in for Microsoft Office allowing direct printing from Word, Excel or PowerPoint.Canon imagePROGRAF series has some of the models below
$4.995 (iPF785), $4.495 (iPF780), $3.195 (iPF685), $2.495 (iPF680), $8.995 (iPF785 M40 MFP), $8.495 (iPF780 and $395 for the M40 MFP prints PosterArtist. and ($595) to SmartWorks MFP Plus software.
- Printer Type
- 5 Colour – 36" / 914.4 mm
- Printer Technology
- Canon inkjet on Demand 5 colours integrated type
- (6 chips per print head x 1 print head)
- Number of Nozzles
- Total: 15,360 MBK: 5,120 nozzles
- C, M, Y, BK: 2,560 nozzles each
- Print Resolution 2,400 x 1,200dpi
- Nozzle Pitch 1,200dpi x 2
- Guaranteed Minimum Line Width 0.02 mm
- Line Accuracy ±0.1% or less
- Ink Droplet Size 4 Picoliter per colour
- Ink Capacity Bundled Starter Ink: 90ml (Only MBK 130ml)
- Sales Ink: 130ml and 300ml
- Ink Type
- Dye/Pigment Reactive Ink
- Dye: Cyan, Magenta, Yellow, Black
- Pigment: Matte Black
- OS Compatability 32 bit - Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1 Windows Server 2003/ 2003R2 , Windows Server 2008
- 64 bit - Windows Vista , Windows 7, Windows 8, Windows 8.1, Windows Server 2003/2003R2, Windows Server 2008/2008R2, Windows Server 2012/2012R2 Mac: OSX - 10.6.8～OS10.9.x
- Printer Languages
- GARO (Graphic Arts language with Raster Operations),
- HP-GL/2, HP RTL
- USB 2.0 High-Speed
- Ethernet 10/100/1000 Base-T/TX
- A0 Size, Plain Paper
- 0:41 min (Fast Economy Mode)
- 0:48 min (Fast Mode)
- 1:15 min (Standard Mode)
- A0 Size, Coated Paper
- 1:15 min (Fast Mode)
- 2:24 min (Standard Mode)
- 3:50 min (High Quality Mode)
- Buffer RAM
- 32GB (Physical Memory 256MB)
- Hard Drive
- 320GB
- Media Width
- Roll paper: 10"/254mm - 36"/914.4mm Cut sheet: 8"/203.2mm - 36"/914.4mm
- Media Thickness
- Roll Unit: 0.07 - 0.8mm
- Top Loading Manual Feed: 0.07 - 0.8mm
- Minimum Printable Length
- Roll: 203.2 mm
- Cut Sheet: 279.4 mm
- Maximum Printable Length
- 18m (varies according to the OS and application)
- Maximum Media Roll Diameter
- 150.0mm
- Paper Feed Method
- Roll Feed: One Roll, top loading, front output
- Top Loading Manual Feed: One sheet, front output
- Borderless Printing Width (Roll Only)
- 10" (254 mm), B4 (257 mm), A3 (297 mm), Banner (300 mm), 14" (356 mm), A2 (420 mm), A2+/17" (432 mm), B2 (515 mm), A1 (594 mm), 24" (610 mm), B1 (728 mm), A0 (841 mm), 36" (914 mm)
- Physical Dimensions (W x D x H)
- 1,304 (W) x 877 (D) x 1,062 (H) mm (With basket open)
- 1,304 (W) x 1,100 (D) x 1,062 (H) mm (When basket is at the extended position for flatbed stacking)
- Weight 68.1kg Approx.
- Canon Printer Driver, Status Monitor/Print Monitor, ExtraKit - Free Layout & iR enlargement Copy, Printer Driver Optimization Module for AutoCAD, Media Configuration Tool, PosterArtist Lite (PC only), Print Plug-in for Microsoft® Word/Excel/PowerPoint (PC only), Direct Print & Share utility, Custom Installer Creation Tool
- Power Supply
- AC 100 - 240 V (50-60 Hz)
- Operation: 140W or less
- Power Off Standby: 0.5 W or less
- Power consumption of sleep mode: 5W or less
- Time to enter sleep mode: approx. 5 min
- Operating Environment 15 - 30°C, 10 - 80 % (Condensation free)
- Noise Level (Approx.)
- Operation: approx. 48 dB
- Standby: 35 dB or less
- Accoustic Power: 6.5 Bels
- Based on ISO 7779
- Regulations
- Europe: CE mark, Germany: TUV mark, Russia: EAC
- Other Countries: CB Certification
- ENERGY STAR (Japan) (USA) (EU), RoHS directive (Europe), The ECO Declaration (TED) (Europe), WEEE (Europe)
- What's in the Box?
- 1 print head, 1 set of starter ink tanks (C,M,Y,Bk - 90ml/MBk - 130ml), 3 inch core adapters, Set up guide, User software CD-ROM (Mac & Win), Carrying caution leaflet, Safety/Standard Environment leaflet, PosterArtist Lite leaflet, PosterArtist Lite software CD-ROM, Annoucement of LFP Survey Program, EAC leaflet, Quick guide
- Roll Holder Set
- RH2-33
- Ink Tanks
- PFI-107: 130ml - MBK/BK/C/M/Y
- PFI-207: 300ml - MBK/BK/C/M/Y
- Print Head
- PF-04
- Maintenance Cartridge
- MC-10
imagePROGRAF iPF785 Operating System Compatibility:
Windows7 / Windows 7 (x64) / Windows 8.1 / Windows 8.1 (x64) / Windows 8 / Windows 8 (x64) / Windows Vista / Windows Vista (x64) / Windows XP / Windows XP (x64) / Macintosh / Mac OS X (10.5/10.6/10.7/10.8/10.9/10.10) / LinuxCanon imagePROGRAF iPF785 Windows 8.1 x32 – Windows 8.1 x64 Here
Canon imagePROGRAF iPF785 Windows 8 x32 – Windows 8 x64 Here
Canon imagePROGRAF iPF785 Windows 7 x32 – Windows Vista x32 – Windows XP x32 Here
Canon imagePROGRAF iPF785 Windows 7 x64 – Windows Vista x64 – Windows XP 64 HereCanon imagePROGRAF iPF785 Driver for Mac Os X
Canon imagePROGRAF iPF785 Mac OS X 10.9 – Mac OS X 10.8 Here
Canon imagePROGRAF iPF785 Mac OS X 10.7 – Mac OS X 10.6 – Mac OS X 10.6 Here
Driver Download or the Installation for Windows Operating System:
How to install the driver for imagePROGRAF iPF785 :
- First, you need to click the link provided for download, then select the option “Save” or “Save as”. Clicking “Save” is for downloading the file. Meanwhile if you choose “Run” or “Open”, the file downloaded will be automatically installed after the downloading process is completed.
- For your information, the driver file that you download will be saved in a certain folder that you have set before, especially in the self-extracting form or (.exe format).
- The last step is double clicking the downloaded file that has the format EXE file for the decompress process. Then, the installation will be automatically started.
How to uninstall the driver by using Control Panel.
Note: The following steps are for Windows 7. The different versions may have the different settings.- Come to the Start menu, then you need to choose Control panel --> choose the driver and click “Uninstall a Program.”
- Wait until a page is appear with the list of the installed program. Then you need to double click the program that you want to uninstall.
- At last, choose “Yes” and “Ok”. The uninstall process is completed.
Driver Download or Installation process for Mac Operating System:
How to install driver of imagePROGRAF iPF785 in Mac:
- First, you need the file of the driver. When you have already completed the downloading process, it will be saved in the certain folder. You can see it at the computer settings.
- Second, you need to double click the downloaded driver file and mount it on the Disk Image.
- The third step is that you need to double click again the mounted Disk Image.
- At last, double clicking the packaged driver file. Do not worry, the installation is about to be started automatically.
